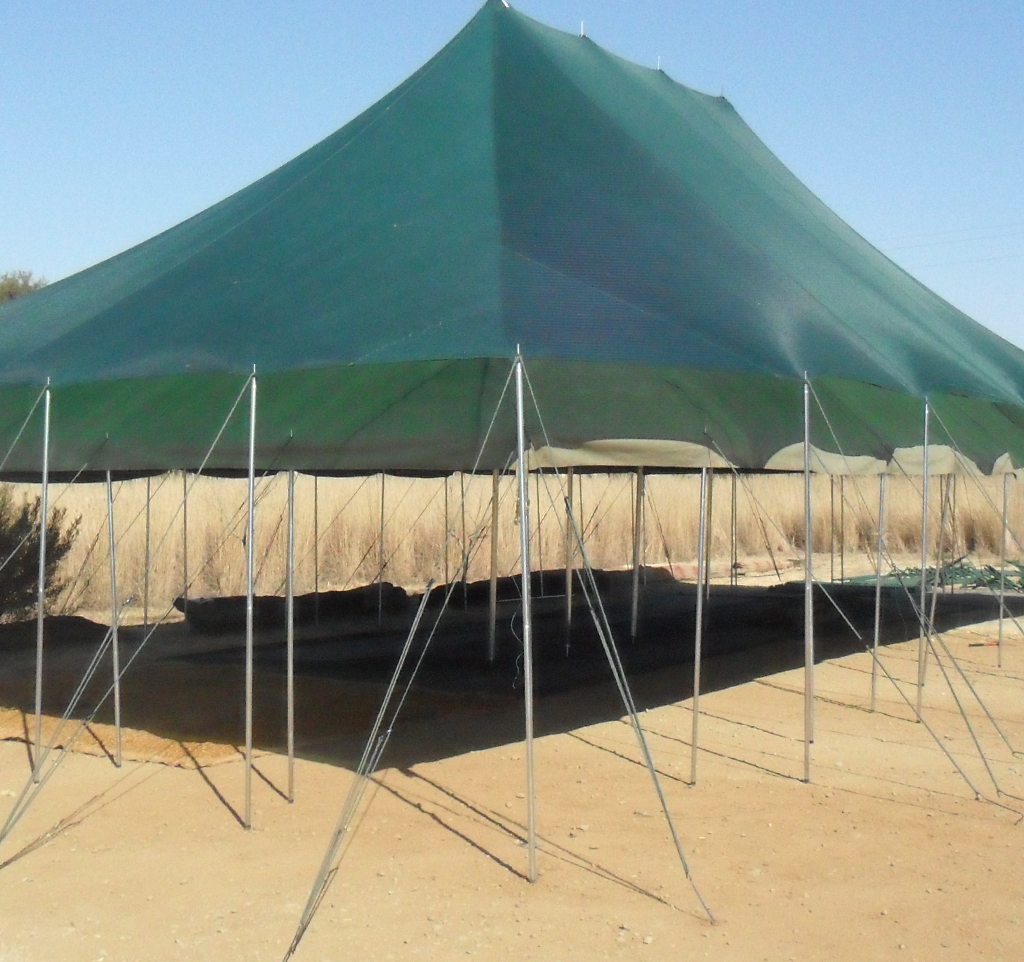

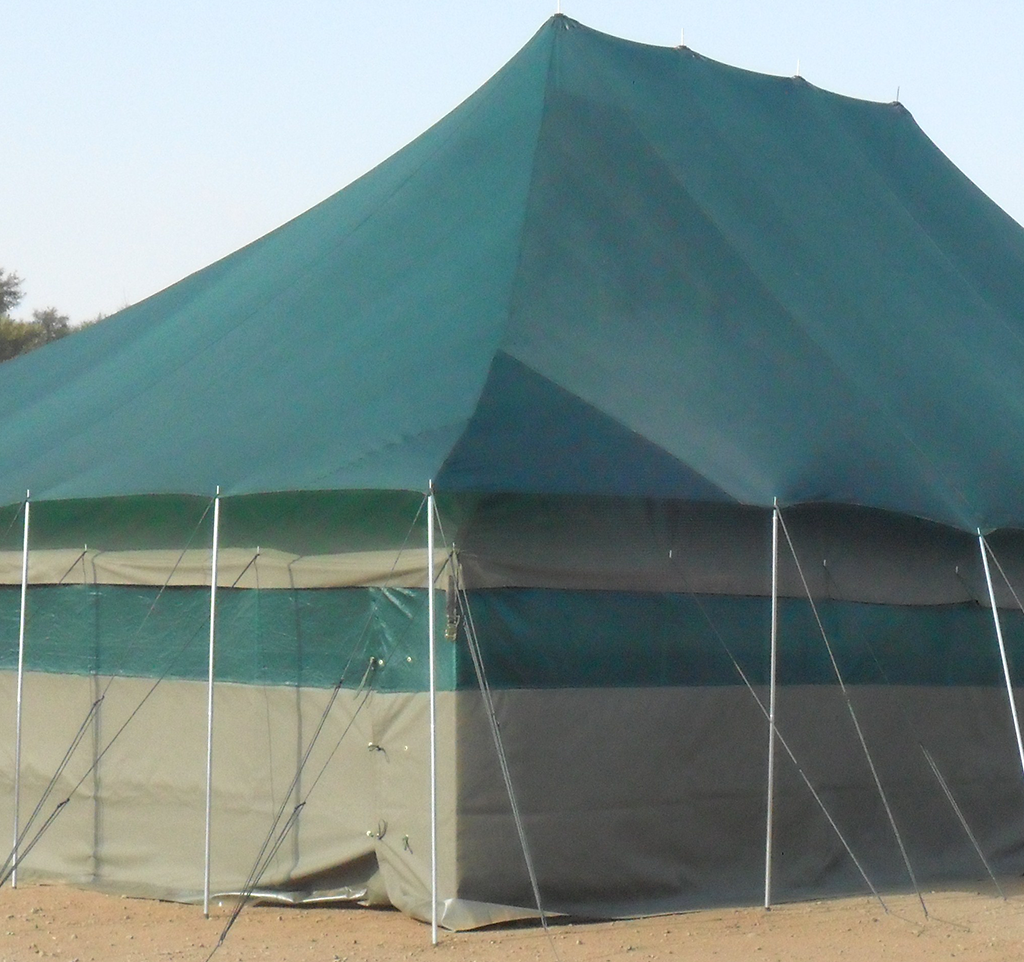

The Canvalodge 5m x 14m Military Tent is a rugged, general-purpose canvas hip-roof tent designed for 16–20 people. Built as a peg-and-pole structure, it is supported by durable poles and a rope-tension system. Featuring a single roof and four detachable walls, with an optional loose groundsheet, this tent is versatile and cost-effective—ideal for personnel accommodation, storage, disaster relief, or field operations.

Quick to erect, easy to transport, and engineered to withstand extreme weather, the Canvalodge 5m x 14m Military Tent offers uncompromising space, stability, and long-term durability in Africa’s harshest environments.

Capacity: 10–20 people (depending on beds or stretchers)

Dimensions: 10 m (L) × 5 m (W) — 50 m² footprint

Height: Apex 3.6 m | Side walls 1.8 m

Weight: ±87 kg

Carry Bags: Due to the tent’s size, a single carry bag is not possible. The roof, six side walls, and anchor ropes are packed separately into three choke bags for protection and easier handling.

2 × 50 mm × 1.6 mm centre poles; 18 × 25 mm × 0.9 mm side-wall poles

3 polyethylene choke bags

30 side-wall pegs; 22 × 6 mm spring-steel anchor pegs

22 × 7 mm braided anchor ropes with sliders

Optional military-spec upgrades: swedged wall poles, steel/chain anchor ropes, 900 mm × 8 mm spring-steel pegs

SABS-approved 320–500 gsm ripstop canvas

Side walls with mosquito netting and PVC mudguards

Optional mosquito netting on air vents

Extendable to 12 m (3 centre poles)

Optional military-spec accessories

Optional double flysheet (shade netting, canvas, or PVC)

Optional two 5 m × 5 m PVC groundsheets (550–710 gsm)
